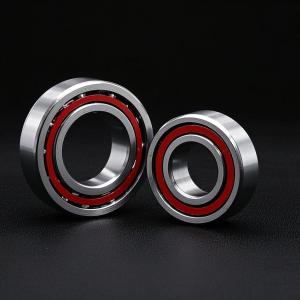

7302B 15X42X13 mm Single Row Angular Contact Ball Bearing
The 7302 bearing,with a bore diameter of 15 mm, outside diameter of 42 mm, and width of 13 mm.This single row angular contact ball bearing can support both radial and axial loads simultaneously, with the axial load being accommodated in one direction only. Depending on the specific model, this bearing is capable of operating at high speeds or even extremely high speeds. Compared to deep groove ball bearings, it can withstand significantly greater unidirectional axial forces.It is particularly well-suited for situations needing robust handling of both radial and significant unidirectional axial loads at high speeds.
| Part Number | 7302 B |
| Bearing Type | Angular Contact |
| Measurement Unit | Metric |
| Dimensions | Inner Bore Diameter (d) | 15 mm |
| Outer Bore Diameter (D) | 42 mm |
| Width (B) | 13 mm |
| Specifications | Contact Angle | 40° |
| Material | Chrome Steel |
| Cage Material | Nylon |
| Number of Rows | Single Row |
| Seal Type | Open |
| Temperature Range | -30°C to 150°C |
| Lubrication | Lubricated |
| Tolerance Class | P6 (ABEC-3) |
| Weight | 0.08 kg |
| Matched Arrangement | No |
| Universal Matching Bearing | No |
| Load and Speed | Dynamic Radial Load | 12000 N |
| Static Radial Load | 6000 N |
| Reference Speed For Grease (r/min) | 14,000 rpm |
| Limiting Speed For Oil(r/min) | 22,000 rpm |
What's the Performance Features of 7302B Bearing?
- High-Speed Operation: With minimal friction, this bearing is designed for stable performance at high speeds.
- Precision and Durability: It offers high precision and strength, making it suitable for applications requiring accurate shaft rotation.
- Angular Contact Design: This design efficiently handles both axial and radial loads, enhancing load capacity and extending the bearing's life.
- Single Direction Load Support: Capable of managing axial loads in one direction along with radial loads, ideal for applications where forces act mainly in one direction.
What's the Applications of the 7302B Bearing?
1. General Industrial Equipment
Drying and Heat Treatment Equipment
Used in curing and drying equipment, rotary dryers, granulation drying equipment, etc., supporting rotating components in high-temperature or continuous operation scenarios.
Metallurgy and Mining Machinery
Applied in iron-making equipment, crushers, mining elemental analyzers, etc., capable of withstanding high loads and impact conditions.
Chemical and Environmental Protection Equipment
Commonly found in stainless steel reactors, fluidized bed dryers, environmental protection and energy-saving equipment, suitable for corrosive or dusty environments.
2. Precision Machining and Manufacturing Equipment
Machine Tools and Automation Equipment
Utilized in cold welding machines, plate rolling machines, hydrostatic guides, and other precision transmission systems, providing high-speed rotation and positioning accuracy.
Food and Packaging Machinery
Achieves stable operation in biscuit machinery, plastic weaving machines, capsule fillers, meeting hygiene and durability requirements.
3.Special Application Scenarios
Energy and Construction Machinery
Suitable for drilling and mining equipment, wind turbine generators, combining high load capacity with resistance to extreme temperatures.
Laboratory and Testing Equipment
Used in pharmaceutical mixing equipment, particle size analyzers, and other precision instruments, ensuring low noise and high reliability.
| Bearing Number | Dimensions (mm) | Basic Load Rating(N) | Limiting Speeds(rpm) | Reference
Weight(Kg) |
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil |
| d | D | B | rmin | r1min | Cr | Cor | Non-contact | Wt ≈ |
| 7301B | 12 | 37 | 12 | 0.60 | 0.30 | 9600 | 4000 | 16000 | 24000 | 0.060 |
| 7302B | 15 | 42 | 13 | 1.00 | 0.60 | 12000 | 6000 | 14000 | 22000 | 0.080 |
| 7303B | 17 | 47 | 14 | 1.00 | 0.60 | 14000 | 8000 | 13000 | 18000 | 0.110 |
| 7304B | 20 | 52 | 15 | 1.00 | 0.60 | 17300 | 9650 | 11000 | 15000 | 0.140 |
| 7305B | 25 | 62 | 17 | 1.10 | 0.60 | 26200 | 15200 | 8500 | 12000 | 0.300 |
| 7306B | 30 | 72 | 19 | 1.10 | 0.60 | 31000 | 19200 | 7500 | 10000 | 0.370 |
| 7307B | 35 | 80 | 21 | 1.50 | 0.60 | 38200 | 24500 | 7000 | 9500 | 0.510 |
| 7308B | 40 | 90 | 23 | 1.50 | 0.60 | 46200 | 30500 | 6300 | 8500 | 0.670 |
| 7309B | 45 | 100 | 25 | 1.50 | 0.60 | 59500 | 39800 | 6000 | 8500 | 0.900 |
| 7310B | 50 | 110 | 27 | 2.00 | 0.60 | 68200 | 48000 | 5000 | 6700 | 1.150 |
| 7311B | 55 | 120 | 29 | 2.0 | 1.0 | 78800 | 56500 | 4500 | 6000 | 1.450 |
| 7312B | 60 | 130 | 31 | 2.1 | 1.1 | 90000 | 66300 | 4300 | 5600 | 1.850 |
| 7313B | 65 | 140 | 33 | 2.1 | 1.1 | 102000 | 77800 | 4000 | 5300 | 2.250 |
| 7314B | 70 | 150 | 35 | 2.1 | 1.1 | 115000 | 87200 | 3600 | 4800 | 2.750 |
| 7315B | 75 | 160 | 37 | 2.1 | 1.1 | 125000 | 98500 | 3400 | 4500 | 3.300 |
| 7316B | 80 | 170 | 39 | 2.1 | 1.1 | 135000 | 110000 | 3600 | 4200 | 3.90 |
| 7317B | 85 | 180 | 41 | 3.0 | 1.1 | 148000 | 122000 | 3000 | 4000 | 4.60 |
| 7318B | 90 | 190 | 43 | 3.0 | 1.1 | 158000 | 138000 | 2800 | 3800 | 5.40 |
| 7319B | 95 | 200 | 45 | 3.0 | 1.1 | 172000 | 155000 | 2800 | 3600 | 6.25 |
| 7320B | 100 | 215 | 47 | 3.0 | 1.1 | 188000 | 180000 | 2400 | 3400 | 7.75 |
| 7321B | 105 | 225 | 49 | 3.0 | 1.1 | 202000 | 195000 | 2200 | 3200 | 8.80 |
| 7322B | 110 | 240 | 50 | 3.0 | 1.1 | 225000 | 225000 | 2000 | 3000 | 10.50 |
| 7328B | 140 | 300 | 62 | 4.0 | 1.5 | 288000 | 315000 | 1700 | 2400 | 22.44 |
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
