S7001 FEGA/HCP4A Super Precision High Speed Single Row Angular Contact Ball Bearing
S7001 FEGA/HCP4A 12*28*8 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
Super-precision, high-speed E design, universally matchable single row angular contact ball bearing with seals
The S7001 FEGA/HCP4A bearing,bore diameter is 12 mm, outside diameter is 28 mm,width is 8 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | S7001 FEGA/HCP4A |
| Bearing Type | Angular Contact |
| Measurement Unit | Metric |
| Dimensions | Inner Bore Diameter (d) | 12 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 |
| Outer Bore Diameter (D) | 28 mm |
| Outer Bore Diameter Tolerance | -0.005mm to 0 |
| Width (B) | 8 mm |
| Width Tolerance | -0.2mm to 0 |
| Specifications | Contact Angle | 18° (15°,25°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material | Phenolic |
| Number of Rows | 1 Single Row |
| Seal Type | Seal on both sides |
| Temperature Range | -30°C to 150°C |
| Lubrication | Grease |
| Tolerance Class | P4A better than P4 |
| Weight | 0.019 kg |
| Matched Arrangement | No |
| Universal Matching Bearing | Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings |
| Preload | EL/Extra Light/Class A |
| Load and Speed | Dynamic Radial Load | 3190 N |
| Static Radial Load | 1340 N |
| Reference Speed For Grease (r/min) | 98,000 rpm |
| Limiting Speed For Oil(r/min) | 150,000 rpm |
What's the Performance Features of S7001 FEGA/HCP4A Bearing?
The S7001 FEGA/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the S7001 FEGA/HCP4A Bearing?
The S7001 FEGA/HCP4A bearing, a super-precision angular contact ball bearing,known for its high precision and load-carrying capacity, is widely utilized in machine tool spindles to reduce friction and enhance machining accuracy and efficiency. It also plays a crucial role in industrial automation equipment, ensuring stable long-term operation due to its superior wear and corrosion resistance. Additionally, this bearing is employed in other high-precision applications like precision measuring instruments and robotic arms, providing accurate rotational support and reliable performance.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
Product Tags:
|
|

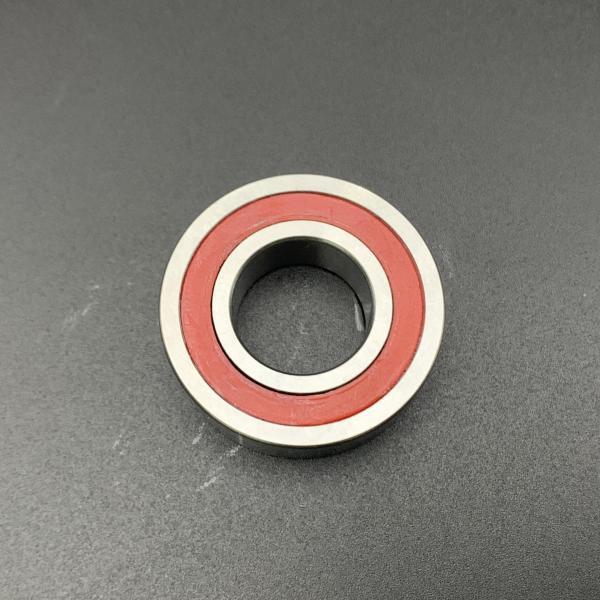

S7001 FEGA/HCP4A High Speed Angular Contact Bearing 12 X 28 X 8 7001 2RS/ 2RZ Images
|
