7202 ACD/HCP4A 15*35*11 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls Super-precision, high-capacity, single row angular contact ball bearing
The 7202 ACD/HCP4A bearing,with a bore diameter of 15 mm, outside diameter of 35 mm, and width of 11 mm, features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade. Equipped with hybrid ceramic balls, this bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.
| Part Number | 7202 ACD/HCP4A |
| Bearing Type | Angular Contact |
| Measurement Unit | Metric |
| Dimensions | Inner Bore Diameter (d) | 15 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 |
| Outer Bore Diameter (D) | 35 mm |
| Outer Bore Diameter Tolerance | -0.006mm to 0 |
| Width (B) | 11 mm |
| Width Tolerance | -0.2mm to 0 |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material | Phenolic |
| Number of Rows | 1 Single Row |
| Seal Type | Open |
| Temperature Range | -30°C to 150°C |
| Lubrication | Grease or Oil |
| Tolerance Class | P4A better than P4 (ABEC-7) |
| Weight | 0.037 kg |
| Matched Arrangement | No |
| Universal Matching Bearing | No |
| Preload | Not applicable |
| Load and Speed | Dynamic Radial Load | 7150 N |
| Static Radial Load | 3200 N |
| Reference Speed For Grease (r/min) | 50,000 rpm |
| Limiting Speed For Oil(r/min) | 75,000 rpm |
What's the Performance Features of 7202 ACD/HCP4A Bearing?
The 7202 ACD/HCP4A angular contact ball bearing is manufactured to P4A precision grade standards, excels in high-precision and high-performance applications. It handles both radial and axial loads simultaneously, supports high-speed operation with stability, minimizes torque and friction for energy efficiency, and offers enhanced rigidity for accuracy under heavy loads. Built with hybrid ceramic balls, this durable bearing ensures extended service life and effective performance across a wide temperature range, making it ideal for applications requiring superior rotational accuracy and reliability.
What's the Applications of the 7202 ACD/HCP4A Bearing?
The 7202 ACD/HCP4A bearing,is a high-precision angular contact ball bearing designed for demanding industrial applications. It excels in sectors requiring reliability and performance, such as electric mixers, etching machines, refrigeration units, wastewater treatment, food and chemical processing, printing, oil and gas equipment, cooling systems, metalworking, garment manufacturing, and various other machinery including agricultural, woodworking, steel mills, and specialized vehicles. Its key strengths lie in high precision, load capacity, and durability, making it an essential component for ensuring optimal operation and longevity across these diverse fields.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
Product Tags:
|
|

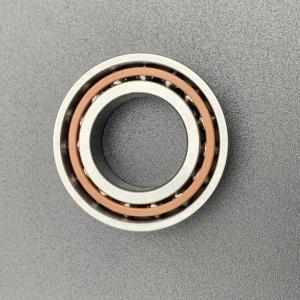

7202 ACD/HCP4A Precision Ball Bearings Angular Contact 15X35X11mm Bearing Images
|
